products
Handy high-sensitivity needle detector (Taldy)
This lightweight, compact, and easy-to-use needle detector is useful in a variety of situations, including detecting broken needles in sewing products, nails in food, and needles left on public transportation seats. Its lightweight, compact design makes it easy for women to use, and its energy-saving design allows it to run for approximately two months on two AA alkaline batteries. It also features a wide sensor for efficient needle detection.
High performance ultra-compact metal detector (PROBE)
"PROBE" is a highly reliable, ultra-compact metal detector developed to improve security. Its compact design allows for discreet use during inspections. Its high metal detection capability accurately detects almost all metallic hazards. Its power-saving design allows it to run for approximately one month on a single AAA alkaline battery, making it versatile.
Main unit: PROBE M-10
Sensor: MS-1K
PROBE is a system that detects minute iron particles in products on production lines for films, paper, cloth, nonwoven fabrics, sanitary materials, building materials, and more. It is compatible with high-speed lines up to 1000 m/min. The main unit, PROBE M-10H, has an LED bar graph display and touch panel operation. The sensor unit, MS-1K, can be manufactured to fit the width of the product being produced. It has a detection capability equivalent to a 0.5 mm iron ball and operates on a 100 to 240 VAC power supply.
High performance Bluetooth Antenna (MBA-01)
The MBA-01 is a high-performance Bluetooth antenna. It enables stable communication over a wide range and improves signal strength and quality for smooth data transmission. Its key features include strong reception, wide-range connectivity, a compact design, and low power consumption. It is the ideal solution for anyone looking for a high-quality wireless connection.
Development track record
Encoder inspection machine
This is an inspection device for comprehensively evaluating encoder performance. It measures the encoder's output signal and electrical characteristics, contributing to quality control and performance evaluation. It features high-precision measurement, versatility, and efficient inspection.

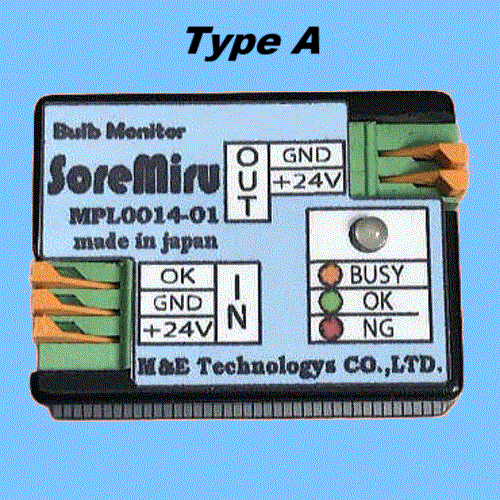

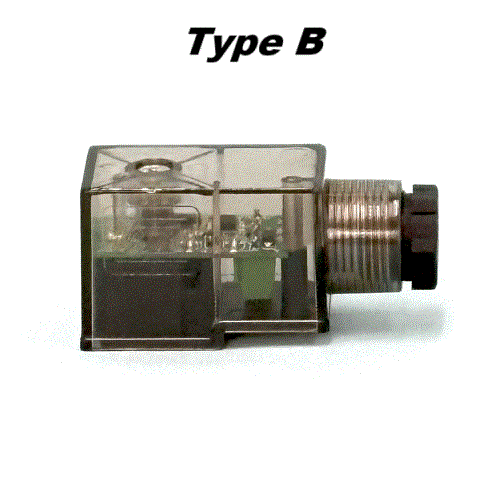

Hydraulic solenoid valve spool operation monitoring device（SoreMiru）
This hydraulic DC solenoid valve spool operation sensor displays the operating status with an LED (green for normal operation, red for malfunction). It supports open collector output, allowing the operating status to be monitored using a controller such as a PLC. Its compact size of 40 x 30 x 20 mm makes wiring easy.
Length measuring encoder
This is a high-precision length measuring encoder with 0.1mm resolution. Its environmentally resistant design allows stable measurements even in harsh working environments. Its compact design makes it easy to incorporate into a variety of devices. It supports a variety of interfaces, including OC output and voltage output.
Touch Panel Controller
This is a controller module with a touch panel and LCD display. Equipped with various interfaces such as I/O, ADC, and DAC, it is a high-performance unit that can be incorporated into control equipment and inspection machines.
Large display
This is a large 7-segment LED display with a character height of 300mm. It has an energy-saving design that can be lit using the dynamic scanning method, and a dedicated controller CPU board is also available.
Pallet nail inspection machine
This is a nailing inspection machine for wooden pallets. It inspects for nailing defects and measures the nailing height with a newly developed non-contact metal sensor. It contributes to product quality assurance and customer safety.
Control Box
We can manufacture control boxes that use IO-Link connection methods for machine operation boxes such as inspection machines and assembly machines. Compatible with M12 connectors, switches, indicator lights, and buzzers can be mounted. Up to 16 inputs and 16 outputs can be configured.
